Understanding Truck Suspension Geometry: Camber, Caster, and Toe Explained
Posted by Suspension Superstore on May 20th 2025
When it comes to optimizing your vehicle’s performance, understanding suspension system parts is essential. In trucks, these parts work together to maintain alignment, support handling, and improve safety. Camber, caster, and toe angles each serve a distinct purpose in ensuring your suspension works efficiently across all driving conditions.
Why Suspension Alignment Matters for Your Truck
Impact on Tire Wear and Longevity
Misalignment accelerates uneven wear, shortening the lifespan of your tires. If your truck suspension is not properly aligned, the tread can wear unevenly across the surface, leading to early replacements. Ensuring correct angles maximizes tire investment and promotes safer driving.
Influence on Steering Response and Handling
Your vehicle’s steering precision is heavily influenced by alignment. If angles like camber or toe are off, your suspension system parts won’t perform as intended, creating a lag in response. A well-aligned suspension improves accuracy when turning or navigating curves, especially in heavy-duty trucks.
Effect on Overall Driving Stability
Driving stability directly relies on the harmony between caster, camber, and toe. A poorly aligned truck suspension can result in swaying, pulling, or vibration, particularly when traveling at high speeds or towing loads. Maintaining alignment preserves control, comfort, and peace of mind.
Decoding Camber: The Wheel's Tilt
Positive Camber: Top of the Tire Tilts Outward
Positive camber means the top of the wheels tilt away from the truck. This setup can be useful in some suspension system parts for heavy-load applications but may decrease grip in everyday driving. It often results in outer-edge tire wear if not properly managed.
Negative Camber: Top of the Tire Tilts Inward
Negative camber angles the tops of the tires inward toward the frame. This geometry enhances grip during turns but can increase wear on the tire’s inner edge. Performance vehicles sometimes benefit from this, but truck suspension should remain more neutral for balanced wear.
Neutral Camber: Wheel is Vertically Straight
Neutral camber occurs when the wheel sits perfectly vertical, providing the best contact patch. This is the ideal configuration for most drivers, especially truck owners using their vehicles for work or towing. It minimizes tire wear and provides consistent handling.
How Incorrect Camber Affects Tire Wear and Handling
Incorrect camber contributes to uneven wear, pulling to one side, and instability on the road. Over time, this adds strain on other suspension system parts such as ball joints or bushings. Drivers may also notice drifting or vibration as a result.
Understanding Caster: Steering Axis Angle
Positive Caster: Steering Axis Tilts Backwards (Towards the Rear)
A positive caster provides directional stability by tilting the steering axis toward the rear. It’s essential in truck suspension to ensure the wheel returns to center after a turn. This setup enhances highway stability, especially under load or while towing.
Negative Caster: Steering Axis Tilts Forwards (Towards the Front)
A negative caster tilts the steering axis forward and is rarely used in modern setups. It can make the steering feel light but unstable, causing wandering. This is not ideal for trucks that require firm, reliable steering on highways and work sites.
Impact on Steering Stability and Return to Center
Caster angle is vital in how naturally your steering wheel returns to center. Too little positive caster can cause loose steering, while excessive positive caster may lead to stiffness. Balanced caster ensures suspension system parts work harmoniously with driver input.
How Caster Influences High-Speed Stability
At high speeds, trucks need predictable tracking and stability. A correctly set caster angle keeps the vehicle straight with minimal correction, improving safety and control. This is especially important for trucks carrying heavy loads or towing equipment.
Explaining Toe: The Wheels' Inward or Outward Pointing
Toe-In: Front of the Tires Pointing Inward
Toe-in occurs when the front edges of the tires angle slightly toward each other. This is a common setup in truck suspension to help stabilize steering at speed. However, too much toe-in can cause tires to wear on the outer edges.
Toe-Out: Front of the Tires Pointing Outward
Toe-out refers to the front edges pointing away from one another. While it can improve responsiveness in performance settings, in trucks it often leads to instability. Excessive toe-out increases wear and may cause poor fuel efficiency.
Neutral Toe: Wheels Point Straight Ahead
The neutral toe ensures both front wheels are perfectly parallel. This configuration promotes even tire wear and efficient handling. It’s especially beneficial when your suspension system parts are regularly exposed to variable loads and terrain.
How Incorrect Toe Contributes to Tire Wear (Feathering)
Feathering is a type of tire wear where one side of the tread wears down faster than the other. This is typically a result of incorrect toe settings. Feathered tires create vibration, noise, and uneven traction, putting stress on truck suspension components.
The Interplay Between Camber, Caster, and Toe
How These Angles Work Together for Optimal Performance
Camber, caster, and toe must be aligned as a cohesive system. When these angles are tuned together, the suspension system parts function efficiently, supporting smooth handling and consistent tire contact. Disrupting one angle often affects the others, which is why precision is key.
The Importance of Correct Alignment Specifications
Each truck has manufacturer-recommended alignment specs designed for weight distribution, frame design, and intended use. Adhering to these guidelines ensures that all suspension system parts work in unison to deliver performance and safety on any terrain.
Why Adjusting One Angle Can Affect Others
Alignment is interconnected—changing camber affects toe, and adjusting caster may shift both. That’s why alignment must be checked as a full system rather than as individual components. This approach helps preserve the balance of your truck suspension system.
Recognizing Signs of Misalignment
Uneven or Excessive Tire Wear
When your tires show premature or lopsided wear, misalignment is often the cause. Uneven wear patterns stress suspension system parts, such as control arms and ball joints, which may eventually lead to costly repairs or complete failure.
Steering Pulling to One Side
A truck that drifts without input likely has one or more alignment angles out of spec. This pull may vary with road speed or surface conditions and often signals that your truck suspension needs immediate attention.
Off-Center Steering Wheel
If the steering wheel doesn’t align properly while driving straight, your alignment is likely off. This is usually caused by incorrect toe or camber angles and can throw off the balance of your suspension system parts, making handling unpredictable.
Loose or Wandering Steering
A vehicle that feels floaty or unresponsive is often experiencing caster issues. When left unresolved, the issue may worsen and lead to a failure in one or more suspension system parts, reducing driver confidence and safety.
Professional Alignment Services: Why Expertise Matters
Specialized Equipment for Accurate Adjustments

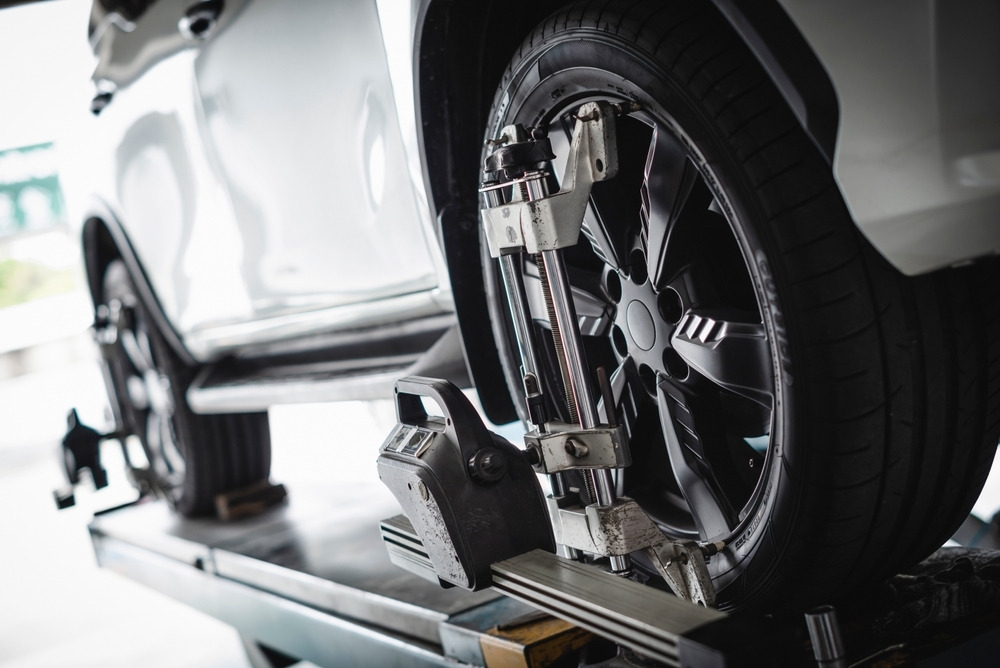

Modern alignment systems use digital lasers and computerized measurements to set camber, caster, and toe precisely. These tools ensure every angle is dialed into the exact specification, helping you get the most out of your truck suspension.
Expertise in Setting Truck-Specific Alignment Angles
Not all vehicles are aligned the same way. Trucks require specialized knowledge and precise calibration due to their weight and suspension design. Professional technicians understand how to adjust suspension system parts for maximum performance and minimal wear.
Ensuring Long-Term Tire Life and Optimal Handling
Proper alignment improves fuel efficiency, handling, and tire longevity. Routine checks prevent the breakdown of vital suspension system parts, keeping your truck on the road longer while reducing maintenance costs.
Keep Your Suspension Aligned and Driving Smooth
Don't underestimate the importance of proper camber, caster, and toe! Understanding these alignment angles is crucial for your truck's safety, stability, and efficiency, directly impacting steering and tire life. Keep an eye out for misalignment and rely on the expertise of professionals to maintain optimal geometry.
