Shock Absorber Anatomy. Single Piston, Dual Piston, Nitrogen Charged, blah blah blah.

A shock absorber, an essential component in vehicles' suspension systems, plays a critical role in ensuring a smooth and controlled ride by damping the oscillations of the springs. Understanding the anatomy of a shock absorber reveals its functionality and how it helps maintain vehicle stability, comfort, and handling. Here’s a detailed overview of its components and their functions:

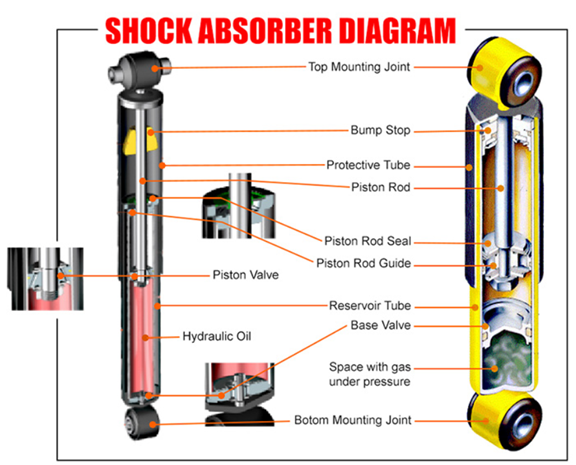

The basic structure of a typical hydraulic shock absorber includes a cylindrical body known as the shock absorber tube. Inside this tube, there is a piston attached to a rod called the piston rod. The piston is designed to move up and down inside the tube, creating resistance against the fluid it displaces. The fluid, usually a special hydraulic oil, is a critical medium that absorbs and dissipates the kinetic energy generated by the vehicle’s motion.

The piston itself contains small valves or ports that allow the fluid to pass through at a controlled rate. These valves regulate the speed of the piston’s movement and, consequently, control the damping effect. When the vehicle encounters a bump or an uneven surface, the piston moves, forcing the hydraulic fluid through these valves, which resists the motion and absorbs the shock.

The piston rod extends out of the shock absorber and connects to the vehicle chassis, while the other end of the shock absorber, called the shock body, is attached to the suspension arm or axle. The area where the piston rod exits the shock absorber body is sealed to prevent fluid leakage; this is done using a durable rod seal and a rod guide, which also keep the rod aligned within the tube.

Most shock absorbers are twin-tube or mono-tube designs. The twin-tube shock absorber consists of an inner tube (working tube) where the piston operates, and an outer tube that acts as a reservoir for excess fluid. When the piston moves within the inner tube, excess fluid flows into the outer chamber. Mono-tube shock absorbers, on the other hand, have a single tube that contains both the piston and the fluid, but are often separated by a floating piston and a gas chamber to enhance performance by reducing foaming of the fluid.

A key feature of modern shock absorbers is the incorporation of a gas chamber in gas-charged shocks. This chamber, often filled with nitrogen gas, is separated from the hydraulic fluid by a floating piston or diaphragm. The gas helps prevent the hydraulic fluid from aerating or foaming under intense conditions, which can reduce damping efficiency.

Another significant component is the compression valve, which manages the flow of fluid during compression (when the piston is pushed into the shock body), and the rebound valve, which controls the fluid during the rebound phase (when the piston rod extends). These valves can be designed to offer different damping characteristics tailored to specific vehicle needs, such as off-road resilience or high-speed stability.

In summary, the anatomy of a shock absorber includes the main body or cylinder, the piston with its valves, the piston rod, the hydraulic fluid, sealing components, and, in gas-charged models, a gas chamber. The interaction of these components ensures that as the suspension moves, the kinetic energy is absorbed and dissipated, allowing for a more controlled ride that minimizes bounce and maintains tire contact with the road.

Single piston, dual piston, what's the difference?

Dual piston shock absorbers and standard shock absorbers differ mainly in their internal construction and how they manage damping forces. A standard shock absorber typically uses a single piston that moves within the shock tube to create resistance as it forces hydraulic fluid through valves. This single-piston design offers a basic level of control over the vehicle's suspension by damping the energy transmitted from the road to the vehicle.

In contrast, a dual piston shock absorber incorporates two pistons within its design. This configuration allows for greater and more precise control over both compression and rebound damping. The dual-piston design means that one piston primarily manages the compression phase (when the shock absorber is compressed as the suspension reacts to a bump), while the second piston handles the rebound phase (when the shock absorber extends as the suspension recovers). This separation can provide more consistent damping, as the fluid flow is more effectively managed during both phases, resulting in better handling, ride comfort, and overall performance.

The dual-piston system can respond more adaptively to varying road conditions by ensuring that each piston is specifically tuned for its respective movement. This is especially beneficial for high-performance or off-road vehicles that need to maintain stability and control in more demanding environments. By allowing for more tailored damping characteristics, dual piston shocks reduce the risk of shock fade—where the shock loses its ability to dampen effectively after extended use due to fluid aeration or heating.

In summary, while a standard shock uses a single piston to manage both compression and rebound, a dual piston shock absorber utilizes two separate pistons to control these phases independently. This design enhances precision, consistency, and adaptability, leading to a superior driving experience, especially under challenging conditions or when high-performance handling is required.

Here Is A Partial Breakdown by Brand:

When selecting sport truck shock absorbers, understanding the internal piston design—single (monotube) versus dual (twin-tube)—is crucial, as it influences performance characteristics. Here's an overview of major brands and their typical designs:

Bilstein: Renowned for their monotube shocks, Bilstein's B8 5100 Series features a single-piston design. This configuration offers superior heat dissipation and consistent performance, making it ideal for off-road and sport applications.

Eibach: Eibach's Pro-Truck Sport Shocks utilize a monotube design with a 46mm piston. This setup provides enhanced damping and durability, suitable for both on-road and off-road conditions.

Fox Racing Shox: Fox primarily produces monotube shocks, such as the Performance Elite 2.5 Coil-Over Reservoir Shock. These shocks are favored for their robust construction and adaptability in various terrains.

Skyjacker: The Skyjacker M95 Performance Monotube Shocks feature a single-tube design. This design helps operating temperatures stay cooler under extreme conditions, providing a fast-responding shock.

Summit Racing: Summit Racing™ Sport Truck Shocks are twin-tube designs. They have special valving and 180 psi of pressurized nitrogen gas to help give your truck better handling.

Monroe: Monroe offers both twin-tube and monotube shocks. For instance, the Monroe 911506 Reflex Monotube Shock Absorber features a single-piston design, providing improved handling and stability.

KYB: KYB's Gas-a-Just series employs a monotube design, delivering enhanced performance and quicker response compared to twin-tube counterparts.

Rancho: Rancho produces both twin-tube and monotube shocks. Their RS5000 series is a twin-tube design, while the RS7000MT series features a monotube construction, catering to different performance needs.

KONI: KONI specializes in twin-tube shock absorbers, offering adjustable damping to fine-tune ride quality and handling characteristics.

Gabriel: Gabriel's MaxControl series utilizes a monotube design, providing responsive handling and improved control for sport truck applications.

Belltech: Belltech offers both twin-tube and monotube shocks. Their Nitro Drop 2 shocks feature a twin-tube design, focusing on comfort and performance for daily drivers. The Street Performance shocks, on the other hand, utilize a monotube design, providing enhanced handling and control for sport applications.

MaxTrac: MaxTrac primarily offers twin-tube shock absorbers. Their shocks are designed to provide a balance between performance and comfort, suitable for various truck applications.

When choosing between single and dual-piston (monotube vs. twin-tube) designs, consider your specific driving conditions and performance requirements. Monotube shocks generally offer better heat dissipation and consistent performance, making them suitable for high-performance and off-road use. Twin-tube shocks, while often more affordable, can provide a comfortable ride for standard driving conditions.
